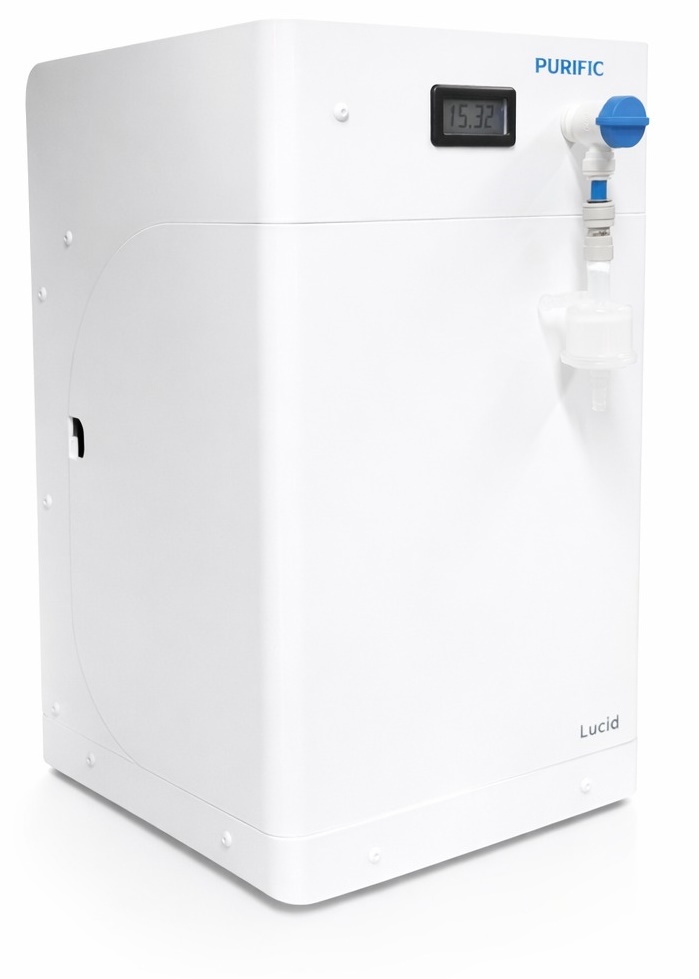

Lucid - Benchtop CLRW Polishing Unit

Benchtop CLRW Polishing Unit

The Benchtop CLRW Polishing Unit is a compact, high-efficiency system designed to elevate pre-treated RO or DI loop water to Clinical Laboratory Reagent Water (CLRW) standards. Engineered for precision, it serves as the final polishing step for non-patient-contact laboratory applications, ensuring your sensitive analyzers receive the ionic purity they require.

Note: Performance is subject to feed-water quality, installation conditions, and routine maintenance. On-site validation by the end user is required.

Key Features at a Glance

Target Quality: Up to 18.2 MΩ·cm resistivity.

Compact Design: Space-saving benchtop format with a low internal hold-up volume.

Monitoring: Real-time resistivity/conductivity display and consumable status alerts.

Maintenance: Service-friendly, quick-access cartridges for minimal downtime.

Technical Specifications

Category	Specification
Resistivity	Up to 18.2 MΩ·cm
Conductivity	As low as 0.055 µS/cm
Microbial Control	0.2 µm final membrane filtration
Feed Source	RO, DI, or treated laboratory loop water
Inlet Options	On-demand dispense; optional flexible gun or fixed outlet
Construction	Chemically resistant wetted materials; smooth, cleanable surfaces

Purification Technology

Our multi-stage polishing train ensures consistent water quality:

Inlet Control: Precise regulation of feed water.

Ion Exchange: High-purity mixed-bed polishing.

Adsorption: Activated carbon for organic reduction.

UV Technology: Optional UV oxidation and sterilization modules.

Final Guard: 0.2 µm membrane filtration for particulate and bacterial control.

Installation & Requirements

Placement: Stable benchtop near a feed-water connection.

Power: Standard electrical supply via external low-voltage adapter.

Environment: Indoor laboratory conditions only.

Service Access: Ensure clearance for quick-change consumable replacement.

Compliance & Safety

Intended Use: Designed for non-patient-contact laboratory applications.

Validation: Supports CLRW-grade production; final suitability must be confirmed by the user under site-specific conditions.

Limitations: Not for direct drinking, patient infusion, or injection. This unit is a polisher and requires compliant upstream pretreatment.

Consumables & Accessories

Keep your system running at peak performance with our genuine replacement parts:

Polishing Cartridges: High-capacity ion exchange media.

Final Filters: 0.2 µm sterile-grade capsules.

UV Lamps: Optional replacement modules for TOC reduction.
