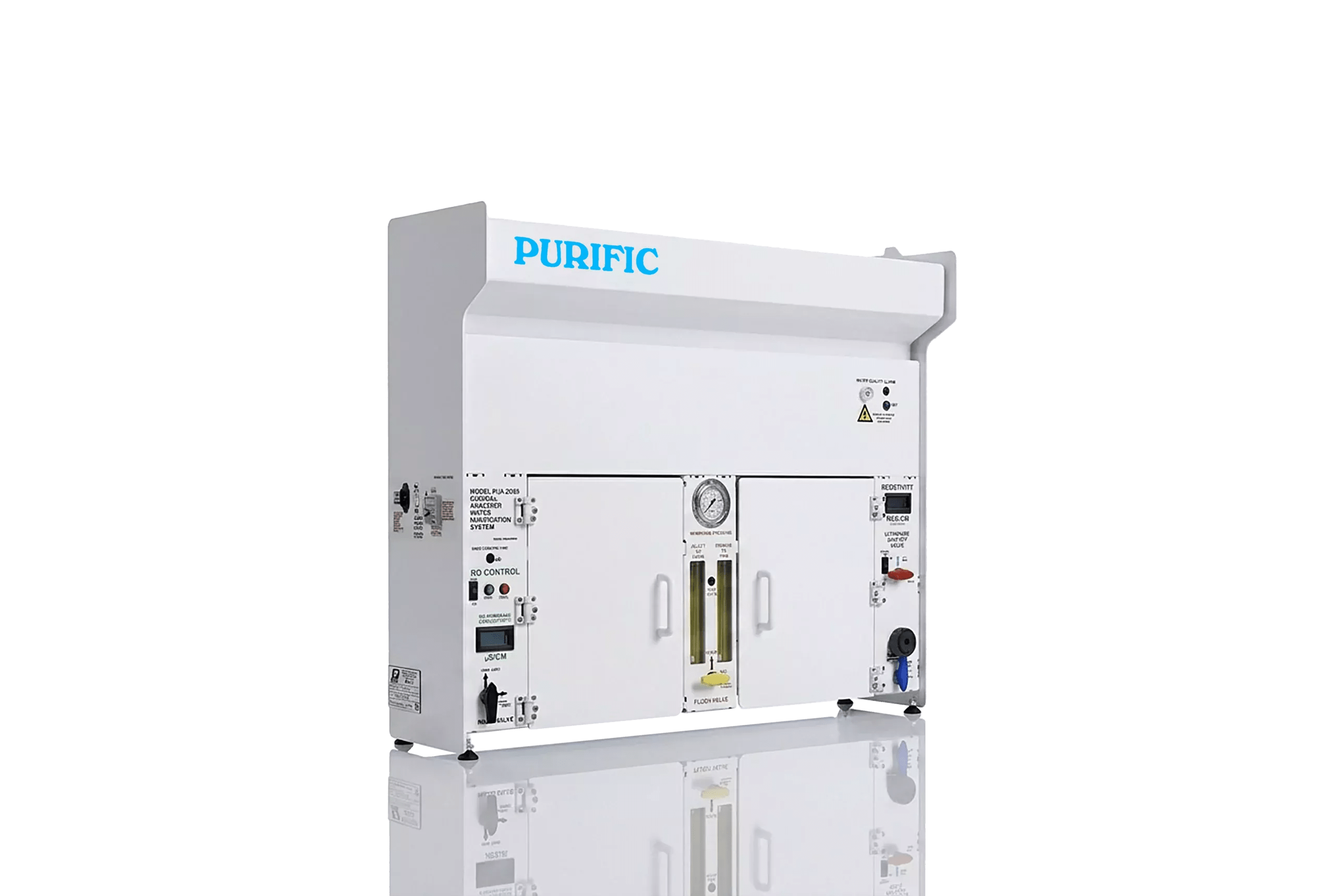

Analytica 100
$15,000 – $27,000 Excludes GST
A water purification system for clinical analysers or general laboratory use that requires reagent grade purified water. Producing 60 to 100 LPH and wall or floor mounted, it is ideal for laboratories running one to two analysers.
The Analytica 100 is the ideal water purification system for both small and large capacity clinical analyser machines, or for general laboratory use that requires reagent grade purified water.
When combined analyser demand approaches 80 LPH, step up to the Analytica 100 Pro for headroom and distribution capacity. Contact Purific to confirm sizing for your specific configuration.
Designed and made in Australia.
Key features
- Production: 60 to 100 LPH of reagent grade purified water.
- Sizing: Ideal for one to two analysers.

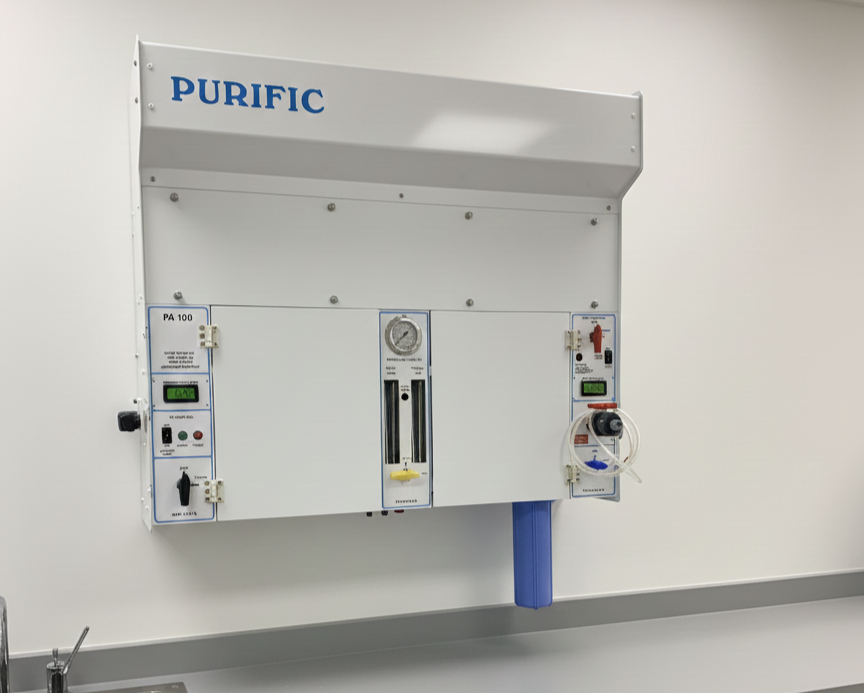

- Installation: Wall or floor mounted, so your laboratory can get the most benefit from available lab space.
- Expandable: Up to four Analytica 100 units can be connected to fill a DT300 distribution centre, giving it a 400+ LPH supply capacity.
Optional add-ons

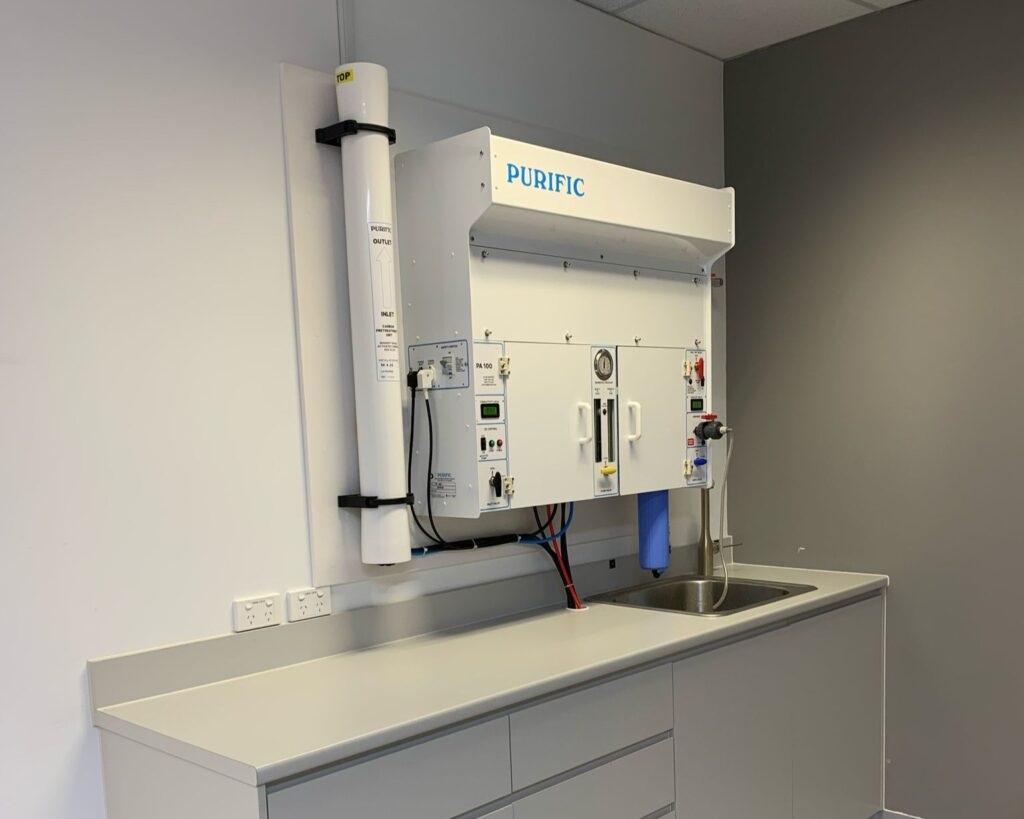

- Carbon Pretreatment Unit (101004): A preliminary filtration unit, wall or floor mounted, with a flexible location.
- RO Pressure Booster (203001): A quiet and reliable Grundfos booster, made in Denmark, floor mounted with a flexible location.

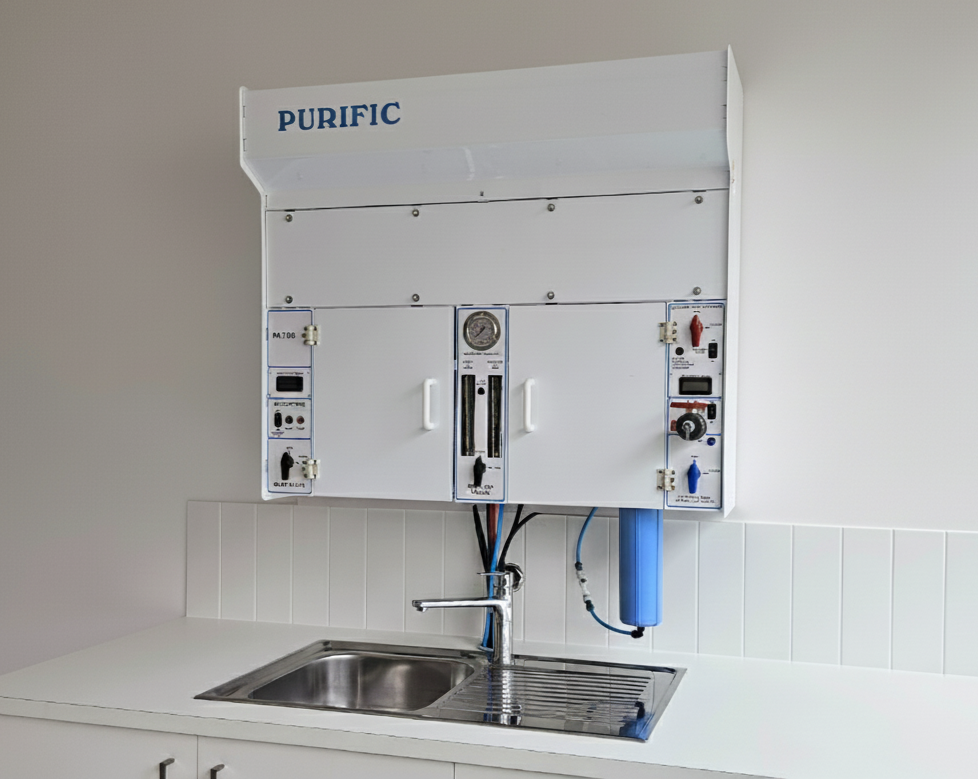

- Analytica Sink (208801): Wall mounted directly below the Analytica, 300 mm from the bottom of the main unit, which leaves space for 20″ filter cartridges. It has a 50 mm sink connection and measures 1040 × 350 × 145 mm (W × D × H).
The figures your laboratory needs to plan for the Analytica 100, covering water quality, performance, feed water, electrical and dimensions.
| Delivery quality (MΩ/cm) | 10–18.2*, ASTM Type 2 |
|---|---|
| TOC (ppb) | 50–500** |
| Final filter (µm) | 0.2 absolute |
| Bacteria (cfu/ml) | < 10 |
| Production (LPH) | 60–100*** |
|---|---|
| Delivery flow (LPH) | 100–180 |
| RO storage (L) | 35 |
| Pre-treatment | Carbon + 3 micron |
| Reverse osmosis | TFC high rejection |
| RO salt rejection | Up to 99% |
| RO polishing | Mixed bed ion exchange |
| Drain flow (LPH) | 100–180 |
| UV | As required |
| Alarm | High purity water quality |
| DI storage | See Analytica 100 Pro |
| Supply | Potable water |
|---|---|
| Pressure (kPa) | 300–700 |
| Temperature (°C) | 1–45 |
| pH | 2–11 |
| TDS (ppm) | ≤ 1000 |
| Free chlorine (ppm) | ≤ 0.1 |
| Supply flow (LPH) | 240 |
| Supply | 240 V AC, 10 A |
|---|---|
| Running current (A) | ≤ 6, incl. RO booster |
| Power (kVA) | < 0.96 |
| H × W × D (mm) | 900 × 1040 × 335 |
|---|---|
| Weight (kg) | 70 |
| Installation | Wall or floor |
| Construction | Powder coated aluminium |
* These values are typical and may vary depending on the nature and concentration of contaminants in the feed water. If ASTM Type 1 (18.2 MΩ) is required, additional polishing may be needed depending on feed water quality.
** Client must specify required TOC. As feed water quality is outside Purific’s control, achieving 50 ppb may require extra treatment and cost.
*** Production capacity is dependent on the quality and quantity of supply water. Typical performance is 80 to 100 L/h based on Australian potable water standards.
Purific designs, builds, installs and supports its own systems in Australia. Use the requirements below to plan power, water, waste and space for your Analytica 100.
Site requirements
- Power: Double GPO 10 A, single phase, 220 to 240 V 50 Hz, for the system and any ancillary equipment such as a UV lamp. Locate it to the left of the unit, typically within 1 m, and not below the unit. Maximum power fluctuation is 10%.
- Feed water: Potable mains water within 2 m of the unit, at 300 to 700 kPa and a supply flow of 240 L/h. The connection is a 15 mm (1/2″ BSP) minimum, non restricted ball valve with a female connection.
- Waste: Tundish, typically 50 mm with a P or S trap, within 2 m and typically directly below the unit, no higher than 800 mm. Waste flow is 100 to 180 L/h and non hazardous.
- Environment: Ambient temperature 18 to 32 °C (up to 2,000 m altitude) or 18 to 30 °C (above 2,000 m), with humidity of 30 to 85%.
Space: 1350 mm of wall space is ideal and 1200 mm is the minimum. Above a sink, allow at least 1500 mm to the ceiling. - Distance to analyser: Typically 5 m or less.
24/7 technical service
- A service engineer is on call 24/7 on 0497 892 166.
- Phone support is free, and calls are answered by an engineer every time.
- Every component is stocked locally in Moss Vale. If you need it urgently, it ships the same day.
Post-install follow-up
Purific provides a complimentary visit or call, weeks after the system goes live, to answer questions and make sure your whole team is confident running the system. You can request it at install.
- Performance check: Water quality reviewed against spec.
- Consumable schedule: Adjusted for your real usage.
- Your questions answered: Whatever has come up since install.
- Team confidence: Everyone using the system, not just one person.
Complete Cover service agreement
Ask us about Complete Cover, our unlimited, zero call-out fee service package:
- Yearly preventative maintenance
- No call-out fees, ever
- No emergency surcharges
- No labour or travel charges
- 24/7 direct access to a Purific engineer
- Minor and major preventive maintenance
- Replacement of key components and major parts
Product Reference: 302001 Model Number: PA-100
