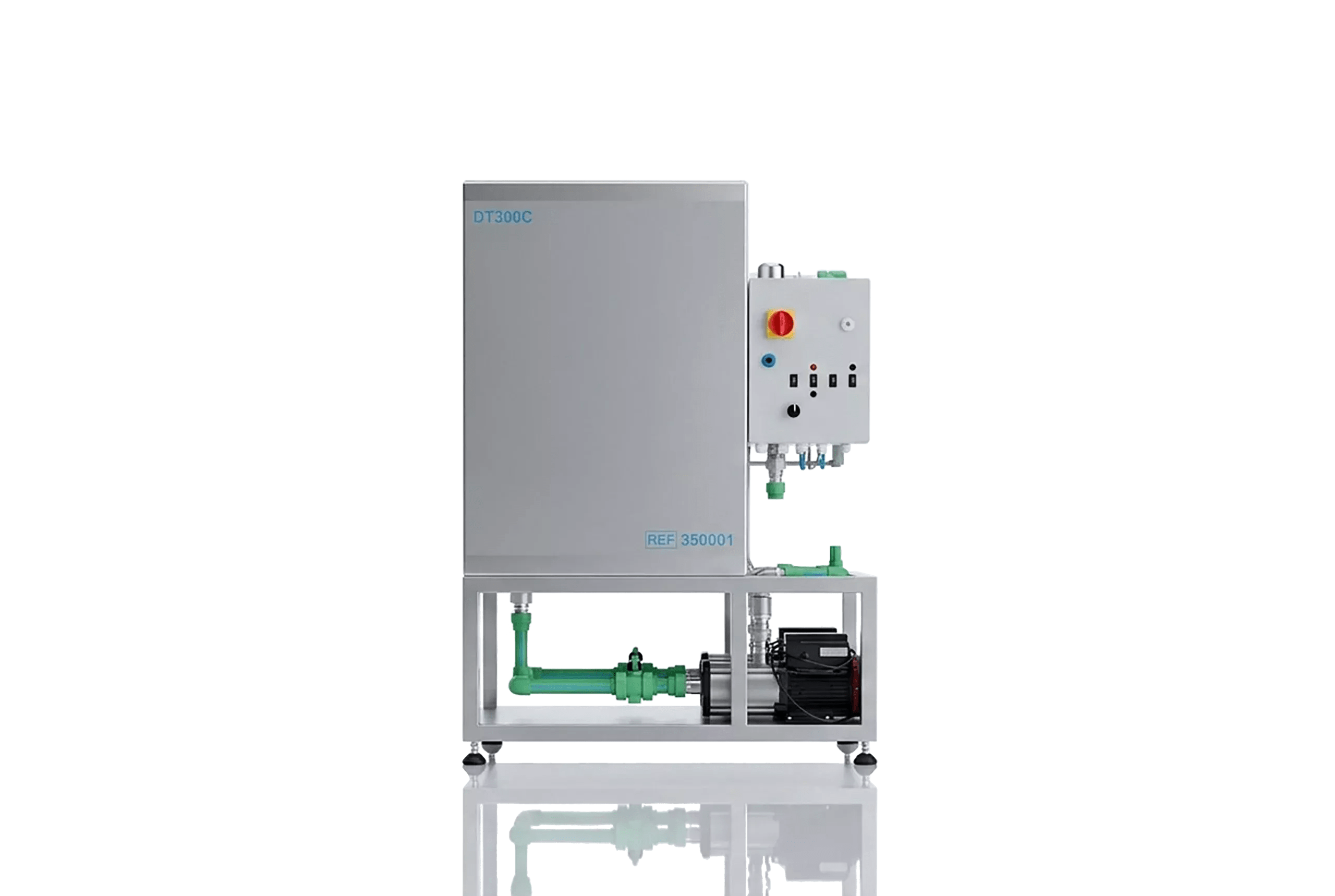

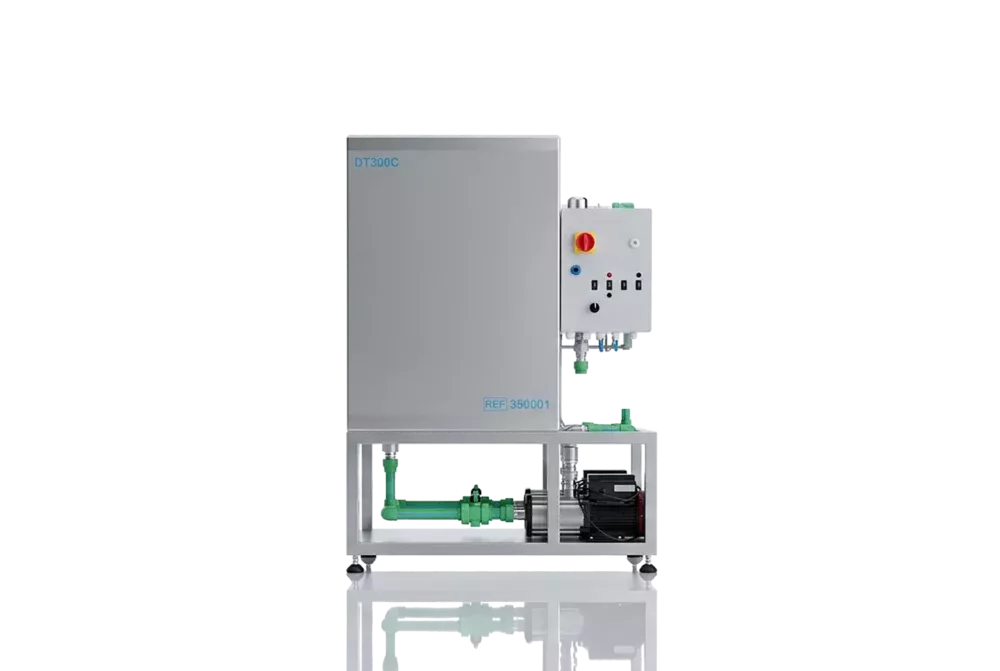

DT 300
$19,500 – $27,250 Excludes GST
A laboratory water distribution centre for large laboratories with a reticulated or recirculating ring main. Its 300 L tank can be filled by up to four Analytica 100 units, giving 400+ LPH supply capacity with up to 50 LPM on peak demand.
The DT 300 is a laboratory water distribution centre, ideally suited for large laboratories with either a reticulated or recirculating ring main. It stores and distributes purified water from your Analytica systems to points of use around the laboratory.
The sizable 300 L tank can be connected to by up to four Analytica 100 units. This gives it a 400+ LPH supply capacity, with up to 50 LPM available on peak demand.
The DT 300 was designed to be part of a full laboratory solution, comprising purification units, storage and distribution, and polishing and maintenance.
Designed and made in Australia.
Key features
- Large storage: A 300 L tank for whole laboratory supply.
- Scalable supply: Fill from up to four Analytica 100 units for 400+ LPH capacity.
- Peak delivery: Up to 50 LPM when demand peaks.
- Ring main ready: Suits reticulated or recirculating ring mains.
- Monitored: Alarms for water quality and tank level.
The figures your laboratory needs to plan for the DT 300, covering water quality, performance, feed water, electrical and dimensions.
| Delivery quality (MΩ/cm) | 5 to 10 |
|---|---|
| TOC (ppb) | < 500 |
| Final filter (µm) | 0.2 absolute |
| Water storage (L) | 300 |
|---|---|
| Delivery flow (LPM) | Up to 50 |
| Supply capacity (LPH) | 400+, with up to 4 Analytica 100 units |
| DI polishing | Available, ancillary equipment required |
| UV | Recirculated: yes. Reticulated: no |
| Alarm | High purity water quality, tank level |
| Source | Purific DI water only |
|---|---|
| Feed units | Up to 4 Analytica 100 |
| Supply | 240 V AC, 10 A |
|---|
| W × D × H (mm) | 1000 × 500 × 1550 |
|---|---|
| Weight (kg) | 85 |
Overall supply capacity is determined by the number of Analytica units connected to the tank. Performance can exceed 500LPH.
One team designs, builds, installs and supports every Purific system. Every system is thoroughly checked and calibrated before commissioning, minimising contamination risk and costly downtime.
Site requirements
- Power: 240 V AC, 10 A supply.
- Feed water: Purific DI water only, from up to four Analytica 100 units.
- Lab supply: A reticulated or recirculating ring main. UV is available on recirculated systems only.
24/7 technical service
A Purific service engineer is on call 24/7 on 0497 892 166. Phone support is free and answered by an engineer all the time, every time.
Every component is stocked locally in Moss Vale. If you need a part urgently, it ships the same day.
Follow up after install
Purific provides a complimentary visit or call weeks after go live, on site or by phone. Request it at install. It includes:
- Performance check: water quality reviewed against spec
- Consumable schedule: adjusted for your real usage
- Your questions answered: whatever has come up since install
- Team confidence: everyone using the system, not just one person
Complete Cover service agreement
For laboratories that cannot afford downtime, Complete Cover is Purific’s highest level service agreement. It eliminates surprise charges and transfers service risk to Purific, for a single fixed annual fee. It includes:
- Yearly preventative maintenance
- Minor and major preventive maintenance
- Replacement of key components and major parts
- 24/7 direct access to a Purific engineer
- No call out fees, no emergency surcharges, and no labour or travel charges
Product Reference: 350001/350002 Model Number: DT 300
