Distribution Platform
$17,000 – $22,000 Excludes GST
A distribution platform that delivers purified water around your laboratory loop, with dual redundancy pumps, loop UV sanitisation and 0.22 µm absolute filtration on both flow and return. Continuous quality monitoring and loop polishing keep water at standard right up to the point of use.

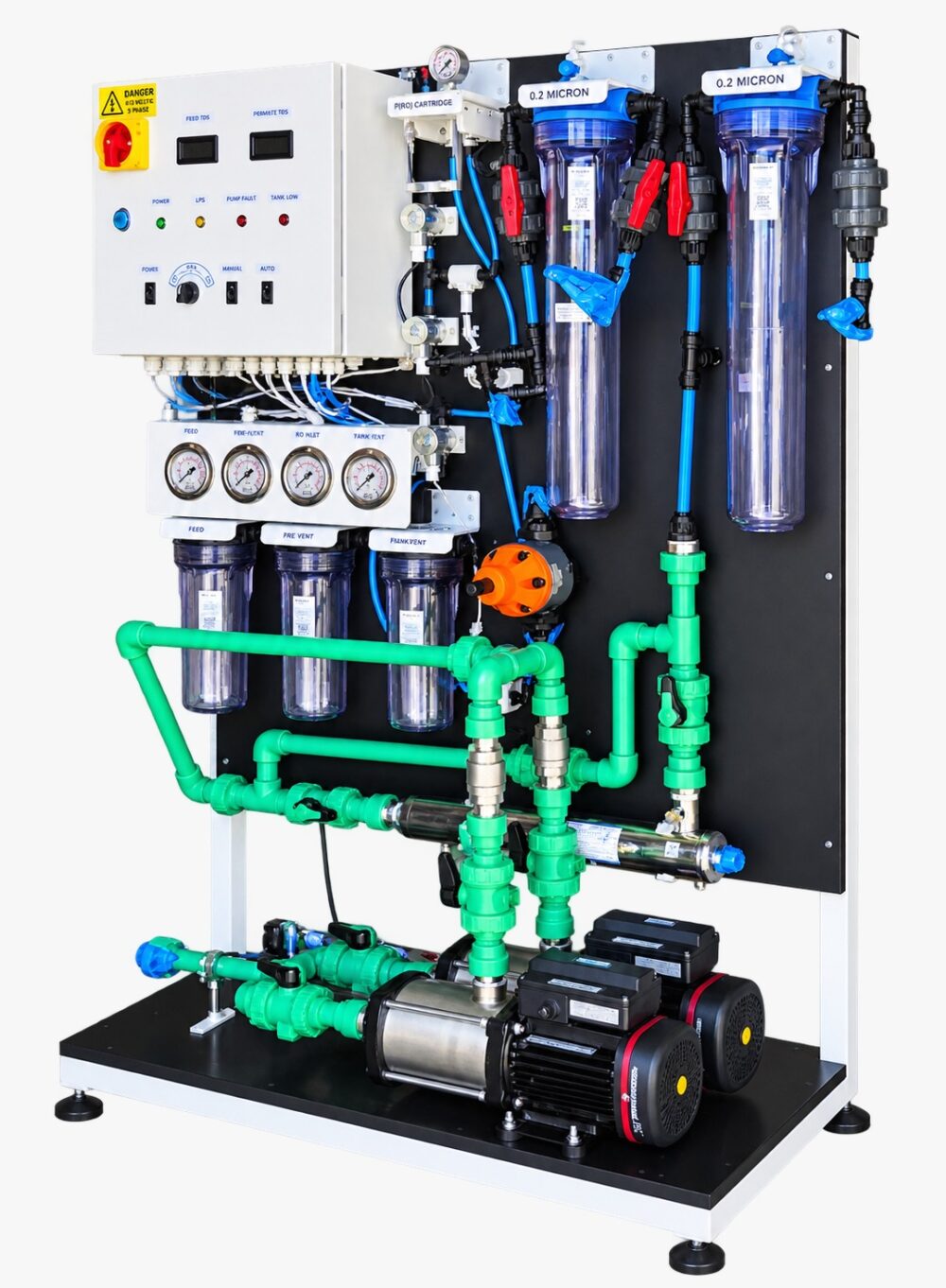

The Distribution Platform takes purified water from your purification system and distributes it around your laboratory loop. It brings pumping, sanitisation, filtration, regulation, monitoring and polishing together in one platform.
Dual redundancy distribution pumps keep water moving even if one pump needs attention. Loop pressure regulation maintains steady pressure at every point of use around the lab.
Loop UV sanitisation helps control microbiological contamination as water circulates. Flow and return 0.22 µm absolute filters remove particulate and biological contamination on the way out to the loop and on the way back.
Continuous loop quality monitoring confirms water quality as it circulates, while loop polishing maintains purity throughout the system.
Designed and made in Australia.
Key features
- Dual redundancy pumps: Two distribution pumps keep supply running if one needs attention.
- Loop UV sanitisation: Helps control microbiological contamination in the loop.
- Flow and return filtration: 0.22 µm absolute filters on both sides of the loop.
- Pressure regulation: Steady loop pressure at every point of use.
- Quality monitoring: Continuous monitoring of loop water quality.
- Loop polishing: Maintains purity as water circulates.
The details your laboratory needs to plan for the Distribution Platform.
| Distribution pumps | Dual redundancy |
|---|---|
| Sanitisation | Loop UV |
| Filtration | Flow and return, 0.22 µm absolute |
| Regulation | Loop pressure regulation |
| MonitorinPolishingg | Loop quality monitoring |
| Loop polishing |
| Delivery capacity (LPH) | Up to 50 |
|---|
| Dimensions (mm) | 1040 × 350 × 1600 |
|---|

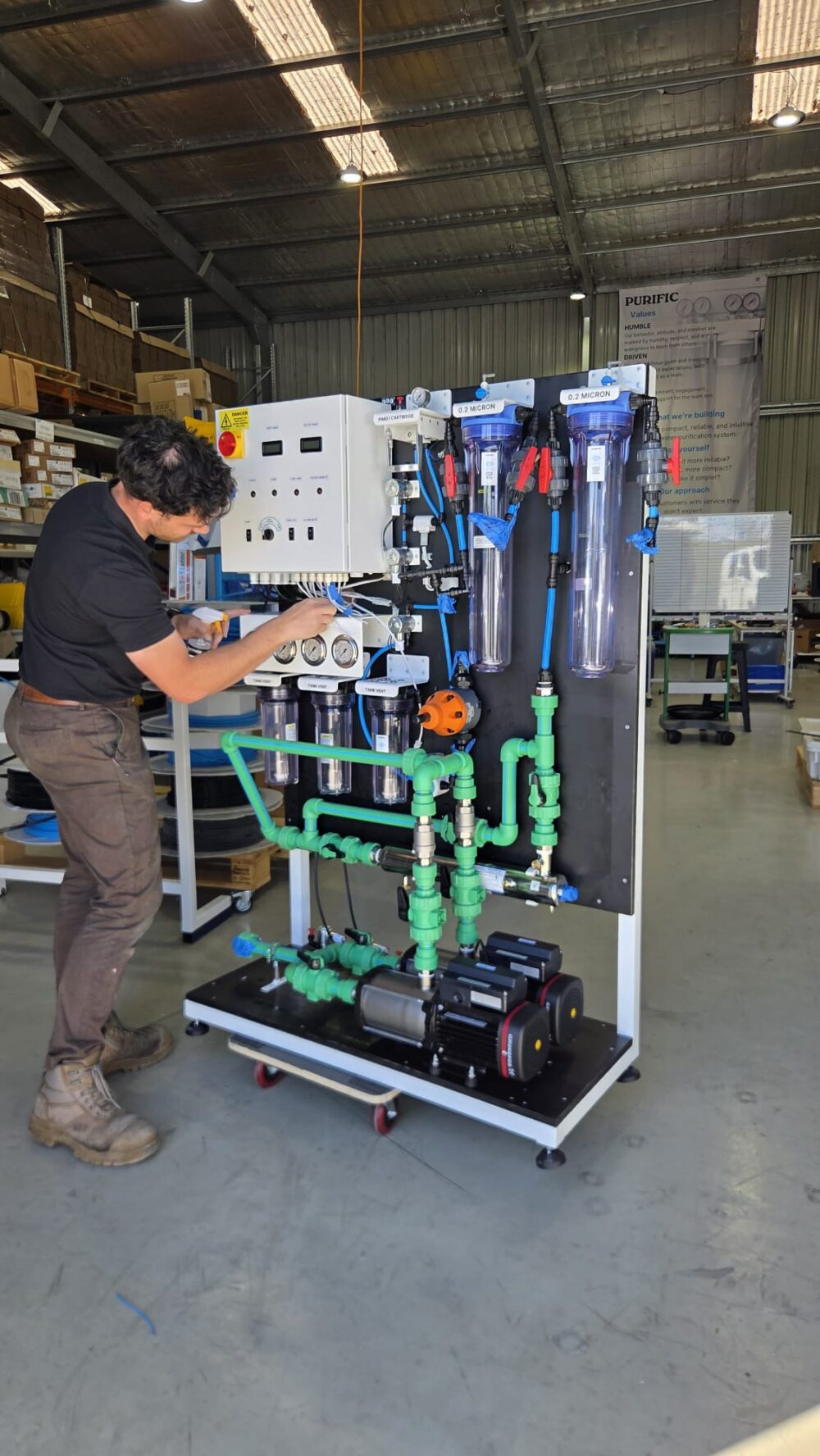

One team designs, builds, installs and supports every Purific system. Every system is thoroughly checked and calibrated before commissioning, minimising contamination risk and costly downtime.
24/7 technical service
A Purific service engineer is on call 24/7 on 0497 892 166. Phone support is free and answered by an engineer all the time, every time.
Every component is stocked locally in Moss Vale. If you need a part urgently, it ships the same day.
Follow up after install
Purific provides a complimentary visit or call weeks after go live, on site or by phone. Request it at install. It includes:
- Performance check: water quality reviewed against spec
- Consumable schedule: adjusted for your real usage
- Your questions answered: whatever has come up since install
- Team confidence: everyone using the system, not just one person
Complete Cover service agreement
For laboratories that cannot afford downtime, Complete Cover is Purific’s highest level service agreement. It eliminates surprise charges and transfers service risk to Purific, for a single fixed annual fee. It includes:
- Yearly preventative maintenance
- Minor and major preventive maintenance
- Replacement of key components and major parts
- 24/7 direct access to a Purific engineer
- No call out fees, no emergency surcharges, and no labour or travel charges
Product Reference: 352000
