Ultramatic Plus GR
$12,770.00 ex.GST
Purified to Ultrapure. Laboratory grade precision.

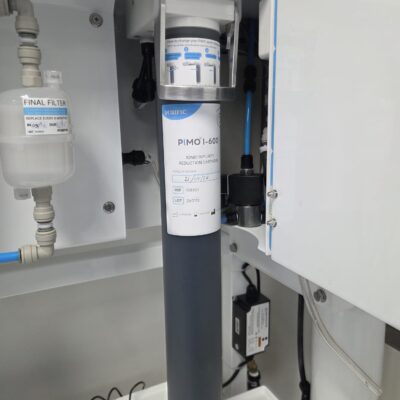

Ultra Purification Module
Purified feed water passes through the ultra purification stage first, reducing ionic contaminants and building the foundation for a resistivity of 18.2 MΩ·cm.
Resistivity 18.2 MΩ·cm
Photo Oxidation & Polishing
A dual wavelength UV lamp (254 and 185 nm) breaks down dissolved organic compounds while the polishing module strips the last traces of ionic and organic contaminants, holding TOC below 3 ppb.
TOC < 3 ppb
0.22 µm Amicrobic Final Filter
A high flow final filter, free of extractables, retains particles and holds bacterial count at or below 0.01 cfu/ml, so the water leaving the tap meets microbiological purity standards every time.
Bacterial Count ≤ 0.01 cfu/ml
Application. Purpose built.
General purpose Type I ultrapure water for laboratories running organic and inorganic trace analysis, HPLC, ICP MS, IC and TOC analysis. One system, engineered for the widest range of everyday analytical work.
Technical Specs. Fixture data.
Water Quality Supplied
Resistivity
18.2 MΩ·cm
TOC
< 3 ppb
Bacterial Count
< 0.01 cfu/ml
Particle Retention
0.22 µm
Dispensing Flow Rate
< 2 L/min
Installation Requirements
Power Supply
110 / 120 / 230V AC, 50/60Hz (earth connection within 2m)
Feed Water Connection
3/8″ male gas thread (max 3m)
Feed Water Quality
Conductivity < 20 µS/cm, pH 4 to 10, TOC < 50 ppb, 5 to 35°C
Operating Pressure
1 bar
Drainage
Maximum 3m
Equipment Dimensions
Unit
60 x 36 x 49 cm (H/W/D)
Weight
35 kg
Power Consumption
0.8A (230VAC) / 1.6A (110VAC)
Noise Level
< 50 dB
Design & Logic. User focused.
4.3″ Touchscreen Control
Dispense manually, by volume, or by time from a single touch interface, with the tank kept automatically topped up so the system is always ready to go.
Full Traceability
Every litre dispensed, every consumable change and every working hour is logged and exportable to USB, giving your team an audit ready record without extra admin.
Secure by Design
A custom access password keeps calibration and configuration changes limited to authorised staff, protecting the integrity of your water quality data.
Mobile Alerts
Optional mobile notifications flag irregularities in real time, so issues get caught before they affect a result.
Maintenance. Simple and fast.

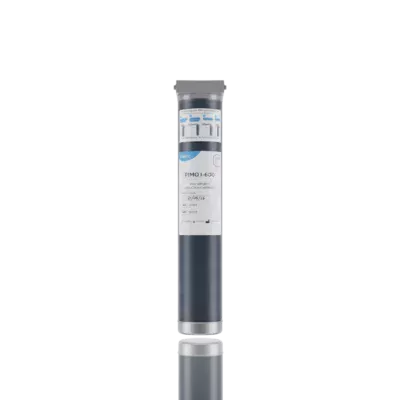

Quick Connect Consumables
Cartridges swap out through a quick connect system with built in anti drip technology, keeping replacement fast and mess free.
Semi Automatic Sanitization
A guided sanitization cycle circulates disinfectant through membranes and filters automatically, with the system prompting the user through each step.
Scheduled Self Checks
The integrated software runs scheduled self checks and issues early warnings for consumable changes, water cuts or probe faults, so maintenance stays ahead of problems rather than reacting to them.
Flexibility. Built to fit your lab.
Space Saving Integration
Designed to integrate into laboratory furniture or mount via wall bracket, keeping the benchtop free for other work without compromising performance.
Optional Remote Dispensers
Digitally controlled remote dispensers (pedestal or wall mount) extend Type I water access to a second point in the lab, away from the main unit.
Tank Fed Supply
Where pre treated water isn’t available at the point of installation, an optional 25L gravity fed tank can supply the system with Type II or osmotised water.
Compliance. Built for regulated environments.
GLP & cGMP Ready
Manufactured under ISO 9001:2015 and ISO 14001, with CE marking following independent safety and EMC testing, supporting integration into GLP and cGMP regulated workflows.
IQOQ Qualifiable
Suited to Installation and Operational Qualification processes required across the pharmaceutical sector, with full traceability built into the system.
Factory Calibrated
Delivered factory calibrated, with the conductivity meter adjustable and recalibratable against a certified standard traceable to DKD (Germany) national standards.
Ownership. Local support.
Australian Technical Backing
Our team provides direct advice on integrating your Ultramatic Plus GR system with existing purified water infrastructure and local lab plumbing standards.
Locally Supported Servicing
Consumables and servicing are supported locally, so uptime doesn’t depend on an overseas freight schedule.
* Optional accessories including the 25L feed tank, wall bracket, compact housing module and remote dispensers are available to suit your lab layout.
In stock
Product Reference:
304101
