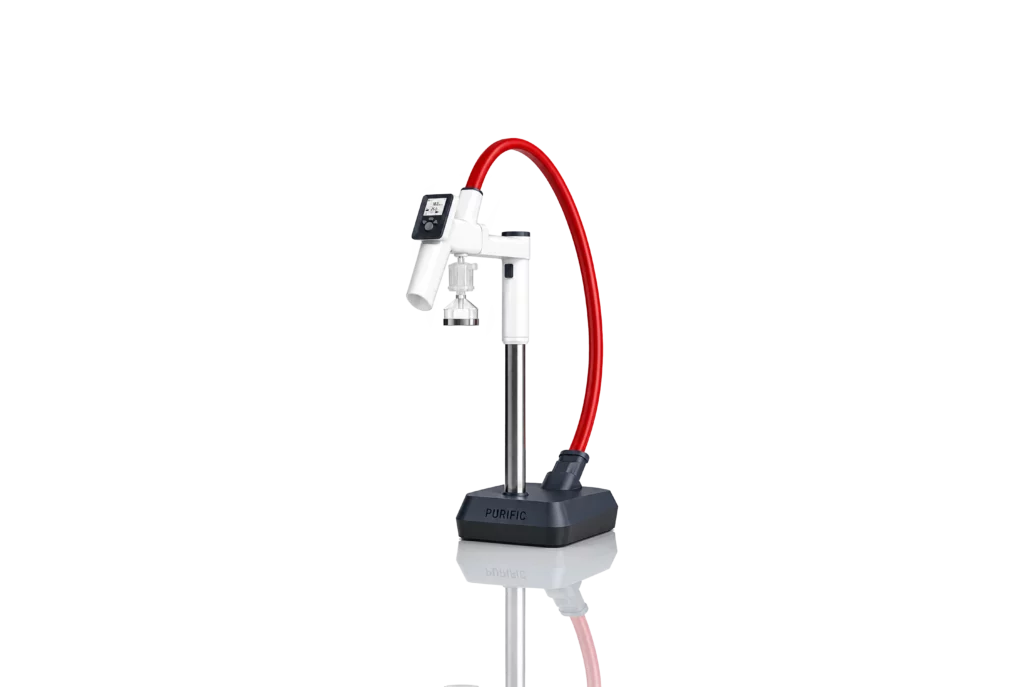

DRAWPOINT – Benchtop Dispensing Arm
$4,850.00 ex.GST
In stock
Precision Dispensing. Verified at the point of use.
Live Colour Display
Monitors resistivity, temperature, flow rate, and cumulative draw volume in real time, so water quality is confirmed at the exact moment it’s dispensed, not assumed from the source.
Real-Time Monitoring
Three Dispensing Modes
General, quantitative, and instant modes cycle to suit the task at hand, covering everything from a quick rinse to a precisely measured volumetric draw.
0.2μm Terminal Microfiltration
A 0.2μm MF terminal microfilter (UF terminal ultrafilter available) removes particulate and biological contamination at the last possible point, producing bacterial-free, nuclease-free, proteinase-free ultrapure water.
Ultrapure Output
Technical Specs. Fixture data.
Drawpoint Benchtop Dispenser Arm
Reference
309003
Power Supply
240V AC
Power
48V
Dimensions (L x W x H)
181 x 626 x 795 mm
Weight
4KG
Dispense Methods
Mode 1
General
Mode 2
Quantitative
Mode 3
Instant
Design & Logic. Built for the bench.
360° Rotating Arm
The arm fixes to its bracket in any direction across a full 360 degrees, so water reaches wherever the bench requires it without repositioning the vessel.
Continuous Circulation
Water circulates back to the host system between draws, maintaining quality throughout, so the first millilitre out is as clean as the last.
Ownership. Scaled to your lab.
Multi-Workstation Coverage
Up to five Drawpoint units run from a single Purific Analytica 100 Pro, covering multiple workstations from one centralised source.
Direct System Integration
Connects directly to your existing Purific system, extending verified ultrapure water from a centralised purification unit to the exact point of use, closing the gap between outlet and vessel.
* Terminal filtration is available with a 0.2μm MF microfilter or a UF ultrafilter, depending on the sterility requirements of your clinical, industrial, or educational laboratory workflow.
Product Reference:
208803
