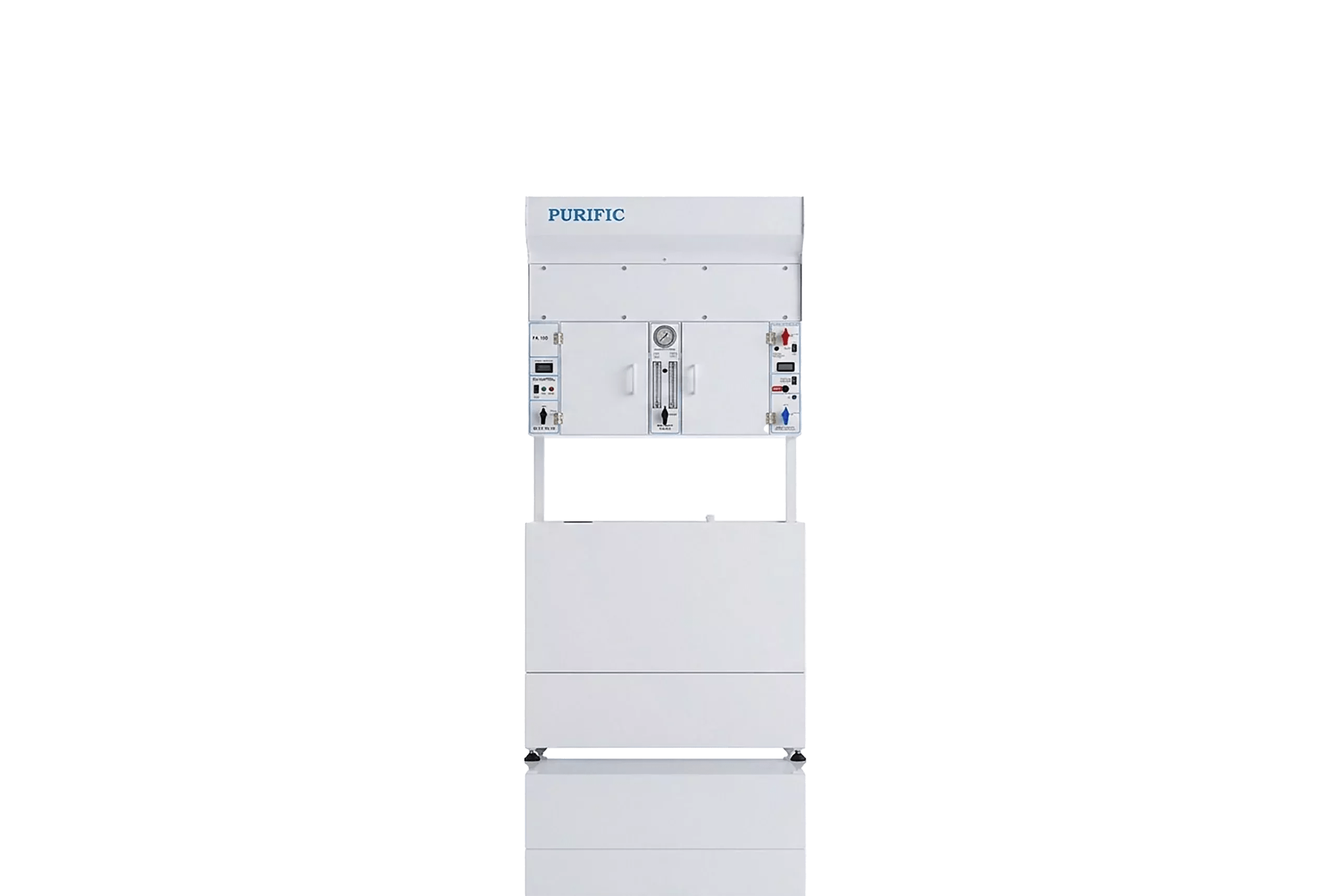

Analytica 100 Pro
$35,000 – $59,000 Excludes GST
A central laboratory water purification system for growing laboratories that supply clinical analysers or multiple points of use. Dual distribution pumps, a 200 L DI distribution tank and a modular design give it the capacity to support a whole laboratory.
The Analytica 100 Pro is an ideal water purification system for growing laboratories that require supply to clinical analysers or multiple points of use around the laboratory. Being reliable and compact, with the capacity to support a whole laboratory, is the focus of the PA-100 Pro.
Great care has gone into the design of this system to enable filter changing and servicing to be as simple and economical as possible, whilst maintaining the highest standard of purity attainable.
When combined analyser demand approaches 80 LPH, the PA-100 Pro gives your laboratory headroom and distribution capacity. Contact Purific to confirm sizing for your specific configuration.
Designed and made in Australia.
Key features
- Reliability: Dual redundancy distribution. Dual distribution pumps with a peak delivery capacity of 50 LPM.

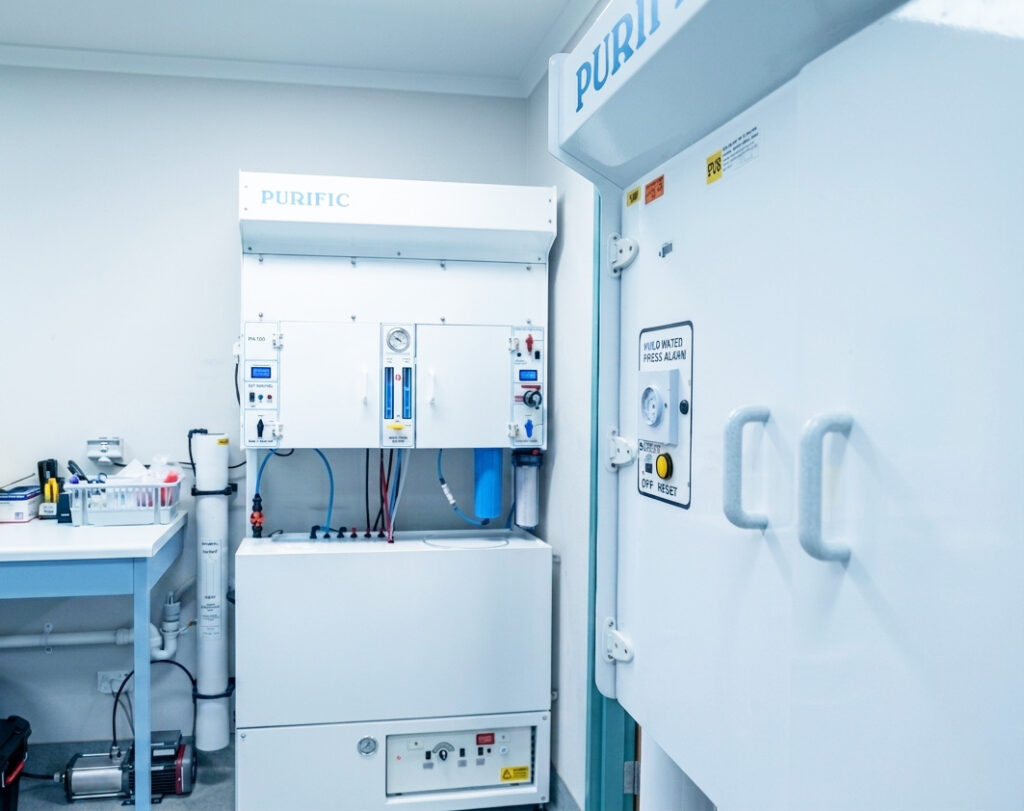

- Compact: Minimal footprint. The 200 L distribution tank sits directly below the main purification system, with a footprint of 1050 mm × 350 mm.

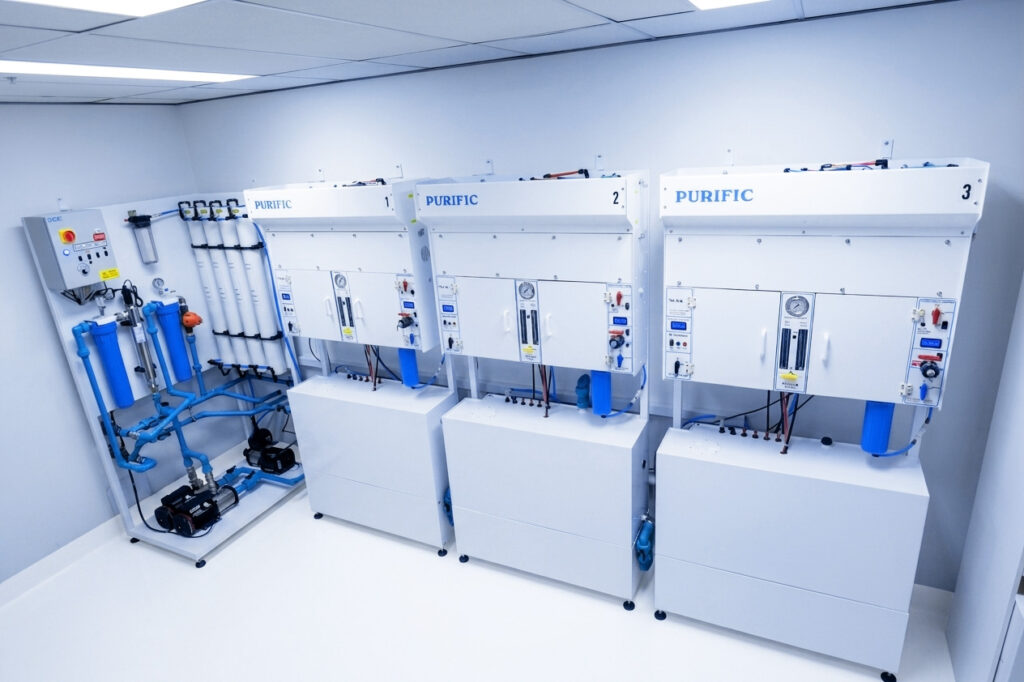

- Capacity: A central laboratory supply system. It can be coupled with additional units to supply multiple analysers and sinks at once.
The figures your laboratory needs to plan for the Analytica 100 Pro, covering water quality, performance, feed water, electrical and dimensions.
| Delivery quality (MΩ/cm) | 10–18.2, CLRW |
|---|---|
| Tank quality (MΩ/cm) | 2–10* |
| TOC (ppb) | 50–500** |
| Final filter (µm) | 0.2 absolute |
| Bacteria (cfu/ml) | < 10 |
| Production (LPH) | 60–100*** |
|---|---|
| Delivery flow (LPM) | ≤ 50 |
| DI distribution tank (L) | 200 |
| RO storage (L) | 35 |
| Distribution pressure (kPa) | 300 – 400 |
| Distribution pumps | 2 × Grundfos CM3-6 |
| Pump operation | Auto and manual |
| Pre-treatment | Carbon + 3 micron |
| RO membrane | TFC high rejection |
| Polishing | Mixed bed ion exchange |
| Drain flow (LPH) | 100 – 180 |
| UV | As required |
| Alarm | High purity water quality |
| Modular | 3+ units |
| Source | Potable water |
|---|---|
| Pressure (kPa) | 300–700 |
| Temperature (°C) | 1–45 |
| pH | 2–11 |
| TDS (ppm) | ≤ 1000 |
| Free chlorine (ppm) | ≤ 0.1 |
| Supply flow (LPH) | > 240 |
| Supply | 240 V AC, 10 A × 2 |
|---|---|
| Current (A) | ≤ 9 |
| Power (kVA) | < 0.96 |
| Heat (BTU) | 3,400 – 4,100 |
| W × D × H (mm) | 1040 × 450 × 2100 |
|---|---|
| Weight (kg) | 300 |
| Mounting | Wall or floor |
| Construction | Aluminium, 316 stainless |
* Higher with a loop polisher applied.
** Client must specify required TOC. As feed water quality is outside Purific’s control, achieving 50 ppb may require extra treatment and cost.
*** Production capacity is dependent on the quality and quantity of supply water. Typical performance is 80 to 100 L/h based on Australian potable water standards.
One team designs, builds, installs and supports every Purific system. Every system is thoroughly checked and calibrated before commissioning, minimising contamination risk and costly downtime. Use the requirements below to plan power, water, waste and space for your Analytica 100 Pro.
Site requirements
- Power: Two 10 A GPOs to the left of the unit, typically within 1 m and at least 1 m from the floor. Not to be located below the unit.
- Feed water: Potable water within 2 m, via a minimum 15 mm (½″ BSP) non-restricted ball valve with a female connection. Sites with low mains pressure need a mains booster pump, which requires additional space.
- Waste: A tundish within 2 m, on the left or right of the unit, typically 50 mm with a P or S trap. The entry must be no higher than 700 mm from the floor.
- Environment:
- 18 to 32 °C at 0 to 2,000 m above sea level
- 18 to 30 °C above 2,000 m
- Humidity 30 to 85%
- Lab supply connections: ½″, ¾″ or 1″ BSP male, with ball valves on the supply and return for a recirculated ring main. Connections must not impede on the 1350 mm × 2100 mm space requirement for each unit. They’re recommended beside the unit at 500 mm from the floor, or at 2.1 m if located above it.
- Supply tubing: The laboratory designer must specify the materials to meet quality and purity standards. Typical materials are SS 316, Rehau and Aquatherm.
Purific does not specify supply tubing materials. - Supply distance: Up to 50 m.
24/7 technical service
A Purific service engineer is on call 24/7 on 0497 892 166. Phone support is free and answered by an engineer all the time, every time.
- Parts on the shelf: Every component is stocked locally in Moss Vale. If you need it urgently, it ships the same day.
- Post-install follow-up: Purific provides a complimentary visit or call weeks after go-live, on-site or by phone, so your whole team is confident running the system. Request it at install. It includes:
- Performance check: water quality reviewed against spec
- Consumable schedule: adjusted for your real usage
- Your questions answered: whatever has come up since install
- Team confidence: everyone using the system, not just one person
Complete Cover service agreement
For laboratories that cannot afford downtime, Complete Cover is Purific’s highest-level service agreement. It eliminates surprise charges and transfers service risk to Purific, for a single fixed annual fee. It includes:
- Yearly preventative maintenance
- Minor and major preventive maintenance
- Replacement of key components and major parts
- 24/7 direct access to a Purific engineer
- No call-out fees, no emergency surcharges, and no labour or travel charges
Download the technical data sheet for full installation details.
Product Reference: 305001 Model Number: PA-100 Pro
